상세 정보 |
|||
| 픽셀 피치: | 4mm | 픽셀 밀도: | 62500 도트/m2 |
|---|---|---|---|
| 픽셀 구성: | 1R1G1B | 최대 전력 소비: | 26W |
| 패널 중량: | 0.3kg | 캐비닛 크기: | 960mm*960mm*85mm |
| 캐비닛 해상도: | 240도트 * 240도트 | 패널 수량: | 18pcs |
| 가장 좋은 관점: | 140/ 120 | 스크린 전원 공급기: | AC110V/220V - 5V60A |
| 최대 전력 용량: | 700W/m2 | 새로 고침 빈도: | 1920-3840 HZ/S |
| 명도: | 800~1000cd/m2 | 작동 온도: | -10°C~45°C |
| IP 보호 지수: | IP43 | ||
| 강조하다: | P4 Pixel Pitch Outdoor LED Display Screen,1920Hz-3840Hz Refresh Rate LED Video Wall,100000 Hours Life Span Outdoor Advertising LED Screen |
||
제품 설명

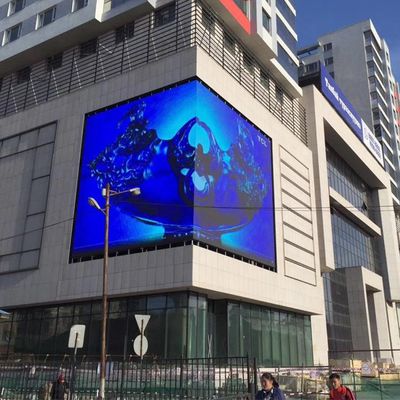

Outdoor P4 1024×1024×170mm Waterproof Cabinet LED Display
Product Specifications
Module Specifications
| Item | Indoor P4 | Indoor P4 | Indoor P4.81 |
|---|---|---|---|
| Panel Dimension | 256mm(W) × 128mm(H) | 320mm(W) × 160mm(H) | 250mm(W) × 250mm(H) |
| Pixel pitch | 4mm | 4mm | 4.81mm |
| Pixel Density | 62500 dot/m² | 62500 dot/m² | 43264 dot/m² |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Specification | SMD2121 | SMD2121 | SMD2121 |
| Pixel resolution | 64 dot × 32 dot | 80 dot × 40 dot | 52 dot × 52 dot |
| Max power consumption | 25W | 26W | 35W |
| Panel weight | 0.2KG | 0.3KG | 0.47KG |
Cabinet Specifications
| Item | Indoor P4 | Indoor P4 | Indoor P4.81 |
|---|---|---|---|
| Cabinet size | 512mm×512mm×85mm | 960mm×960mm×85mm | 500×1000mm×85mm, 500×500×85mm |
| Cabinet Resolution | 128 dot × 128 dot | 240 dot × 240 dot | 104 dot × 208 dot, 104 dot × 104 dot |
| Quantity of panel | 8pcs | 18pcs | 8pcs, 4pcs |
| Hub connecting | HUB75-E | HUB75-E | HUB75-E |
| Cabinet Material | Diecasting aluminum cabinet / Iron cabinet | Diecasting aluminum cabinet / Iron cabinet | Diecasting aluminum cabinet / Iron cabinet |
| Maintenance Method | Front/Back service | Front/Back service | Front/Back service |
| Best viewing angle | 140/120 | 140/120 | 170/120 |
| Screen power supply | AC110V/220V - 5V60A | AC110V/220V - 5V60A | AC110V/220V - 5V40A |
| Max power capacity | 1200 W/m² | 700 W/m² | 800W/m² |
| Average power | 600 W/m² | 350 W/m² | 400W/m² |
Technical Specifications
| Item | Indoor P4 | Indoor P4 | Indoor P4.81 |
|---|---|---|---|
| Driving IC | ICN 2037 / 2153 | ICN 2037 / 2153 | ICN 2037 / 2153 |
| Scan Rate | 1/16S | 1/20S | 1/13S |
| Refresh frequency | 1920-3840 HZ/S | 1920-3840 HZ/S | 1920-3840 HZ/S |
| Display color | 4096×4096×4096 | 4096×4096×4096 | 4096×4096×4096 |
| Brightness | 800-1000 cd/m² | 800-1000 cd/m² | 800-1000 cd/m² |
| Life span | 100000Hours | 100000Hours | 100000Hours |
| Control distance | < 100M | < 100M | < 100M |
| Best viewing distance | 4-30M | 4-30M | 4-40M |
| Operating temperature | -10°C~45°C | -10°C~45°C | -10°C~45°C |
| Operating Humidity | 10-90% | 10-90% | 10-90% |
| IP protective index | IP43 | IP43 | IP43 |
