상세 정보 |
|||
| 픽셀 피치: | 5mm, 6mm, 6.67mm | 픽셀 밀도: | 40000 도트/m2, 27777 도트/m2, 22477 도트/m2 |
|---|---|---|---|
| 픽셀 구성: | 1R1G1B | 최대 전력 소비: | 40W, 29W, 43W |
| 패널 중량: | 0.45KG, 0.35KG, 0.45KG | 캐비닛 크기: | 960mm*960mm*90mm, 576mm*576mm*90mm, 768mm*768mm*90mm |
| 캐비닛 해상도: | 192도트 * 192도트, 96도트 * 96도트, 128도트*128도트, 144도트*144도트 | 허브 연결: | HUB75-E |
| 가장 좋은 관점: | 170/120, 140/120 | 스크린 전원 공급기: | AC110V/220V - 5V60A |
| 최대 전력 용량: | 976W/m2, 1050W/m2, 1350W/m2 | 새로 고침 빈도: | 1920-3840 HZ/S |
| 명도: | 5000-5500mcd/m2, 4000-5000cd/m2 | 작동 온도: | -10°C~45°C |
| IP 보호 지수: | IP65 | ||
| 강조하다: | 960*960 LED Video Wall,P5 P6.67 P8 P10 Outdoor LED Display Screen,2 Years Warranty LED Billboard |
||
제품 설명

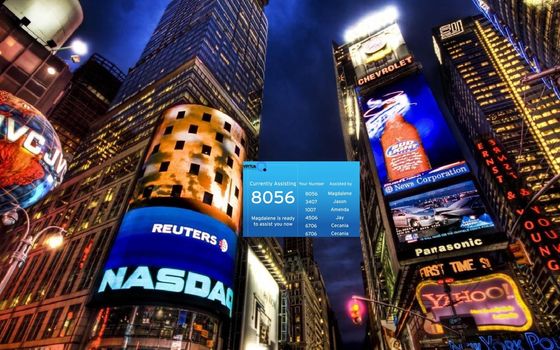

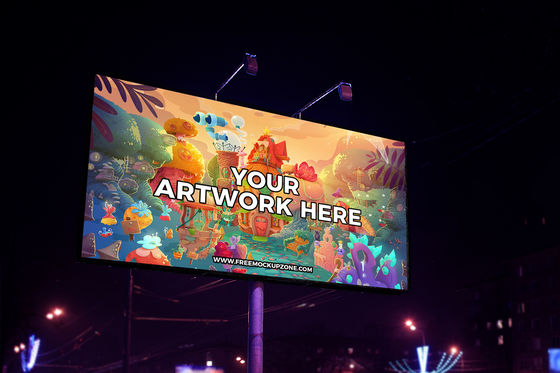

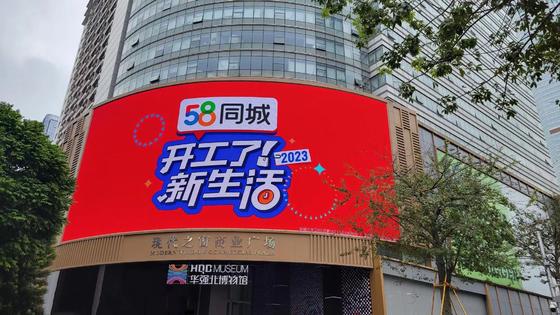

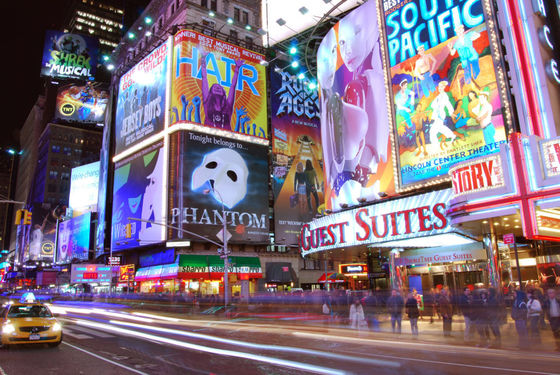

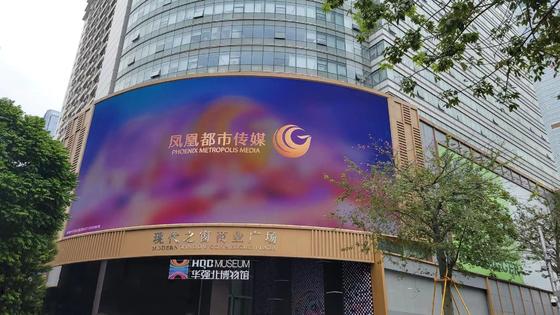

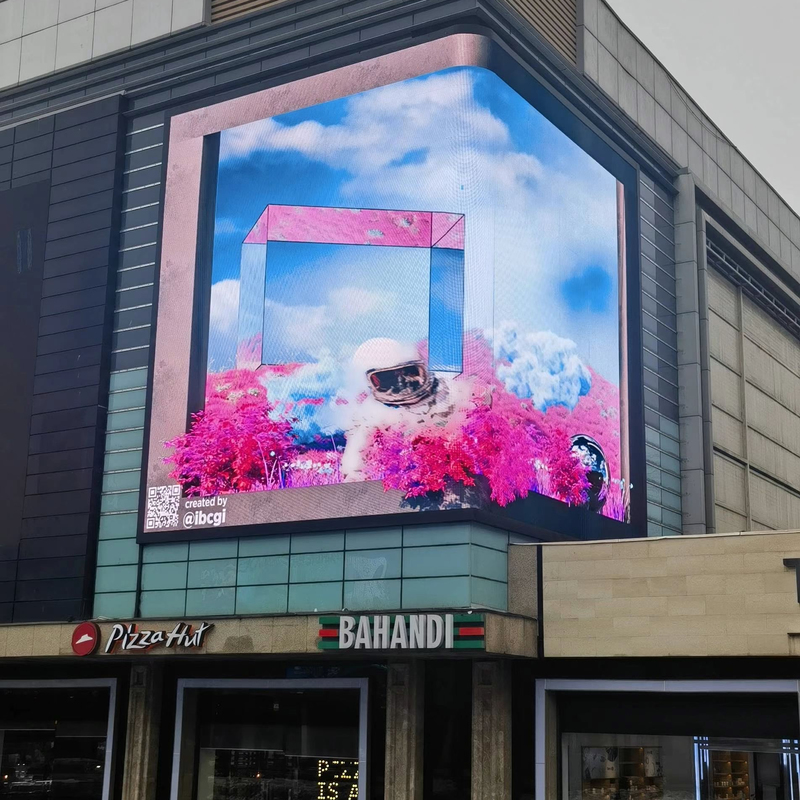

960×960 P5 P6.67 P8 P10 LED Billboard Outdoor Advertising Full HD Video Panel LED Wall Display
Module Specifications
| Item | Outdoor P5 | Outdoor P6 | Outdoor P6.67 |
|---|---|---|---|
| Panel Dimension | 320mm(W) × 160mm(H) | 192mm(W) × 192mm(H) | 320mm(W) × 160mm(H) |
| Pixel pitch | 5mm | 6mm | 6.67mm |
| Pixel Density | 40000 dot/m² | 27777 dot/m² | 22477 dot/m² |
| Pixel configuration | 1R1G1B | 1R1G1B | 1R1G1B |
| Specification | SMD1921 | SMD3535 | SMD3535 |
| Pixel resolution | 64 dot × 32 dot | 32 dot × 32 dot | 48 dot × 48 dot |
| Max power consumption | 40W | 29W | 43W |
| Panel weight | 0.45KG | 0.35KG | 0.45KG |
Cabinet Specifications
| Item | Outdoor P5 | Outdoor P6 | Outdoor P6.67 |
|---|---|---|---|
| Cabinet size | 960mm×960mm×90mm | 576mm×576mm×90mm, 768mm×768mm×90mm | 960mm×960mm×90mm |
| Cabinet Resolution | 192 dot × 192 dot | 96 dot × 96 dot, 128dot×128dot | 144dot×144dot |
| Quantity of panel | 18pcs | 9pcs, 16pcs | 18pcs |
| Hub connecting | HUB75-E | HUB75-E | HUB75-E |
| Cabinet Material | Diecasting aluminum cabinet | Diecasting aluminum cabinet | Diecasting aluminum cabinet |
| Maintenance Method | Front/Back service | Front/Back service | Front/Back service |
| Best viewing angle | 170/120 | 140/120 | 140/120 |
| Screen power supply | AC110V/220V - 5V60A | AC110V/220V - 5V60A | AC110V/220V - 5V60A |
| Max power capacity | 976W/m² | 1050W/m² | 1350W/m² |
| Average power | 488W/m² | 525 W/m² | 675W/m² |
Technical Specifications
| Item | Outdoor P5 | Outdoor P6 | Outdoor P6.67 |
|---|---|---|---|
| Driving IC | ICN 2037 / 2153 | ICN 2037 / 2153 | ICN 2037 / 2153 |
| Scan Rate | 1/8S | 1/8S | 1/6S |
| Refresh frequency | 1920-3840 HZ/S | 1920-3840 HZ/S | 1920-3840 HZ/S |
| Display color | 4096×4096×4096 | 4096×4096×4096 | 4096×4096×4096 |
| Brightness | 5000-5500 mcd/m² | 4000-5000 cd/m² | 4000-5000 cd/m² |
| Life span | 100000 Hours | 100000 Hours | 100000 Hours |
| Control distance | < 100M | < 100M | < 100M |
| Best viewing distance | 5-40M | 6-40M | 6-40M |
| Operating temperature | -10°C ~ 45°C | -10°C ~ 45°C | -10°C ~ 45°C |
| Operating Humidity | 10-90% | 10-90% | 10-90% |
| IP protective index | IP65 | IP65 | IP65 |
