상세 정보 |
|||
| 캐비닛 크기: | 640mm*640mm | 재료: | 다이캐스팅 알루미늄 캐비닛 |
|---|---|---|---|
| 운전 IC: | ICN 1065 | 스캔 속도: | 1/32초 |
| 명도: | 800-1000cd/m2 | 최상의 시청 거리: | 2-30m |
| 패널 차원: | 320mm ((W) * 160mm ((H) | LED 사양: | SMD2121 |
| 강조하다: | indoor LED display screen for business,fixed LED display for office,indoor LED screen with warranty |
||
제품 설명
Indoor LED Display Screen For Business Meeting And Office Display Indoor Display Screen Indoor Fixed Led Display
Product Specifications
Module Specifications
| Parameter | Value |
|---|---|
| Panel Dimension | 320mm(W) * 160mm(H) |
| Pixel pitch | 2.5mm |
| Pixel Density | 160000dot/m2 |
| Pixel configuration | 1R1G1B |
| LED specification | SMD2121 |
| Pixel resolution | 128dot * 64dot |
| Max power consumption | 30W |
| Panel weight | 0.5KG |
Cabinet Specifications
| Parameter | Value |
|---|---|
| Cabinet size | 640mm*640mm |
| Cabinet Resolution | 256dot * 256dot |
| Quantity of panel | 8pcs |
| Hub connecting | HUB75-E |
| Material | Diecasting Aluminum Cabinet |
| Maintenance Method | Front/Back service |
| Best viewing angle | 140/120 |
| Screen power supply | AC110V/220V - 5V40A |
| Max power capacity | 780 W/m2 |
| Average power consumption | 390W/m2 |
| Panel weight | 12KG |
Technical Signal Index
| Parameter | Value |
|---|---|
| Driving IC | ICN 1065 |
| Scan Rate | 1/32S |
| Refresh frequency | 3840 HZ/S |
| Brightness | 800-1000cd/m2 |
| Life span | 100000Hours |
| Display color | 4096*4096*4096 |
| Contrast Ratio | 4000:1 |
| Control distance | <100M |
| Best viewing distance | 2-30M |
| Operating temperature | -10C°~45C° |
| Operating Humidity | 10-90 % |
| IP protective index | IP43 |

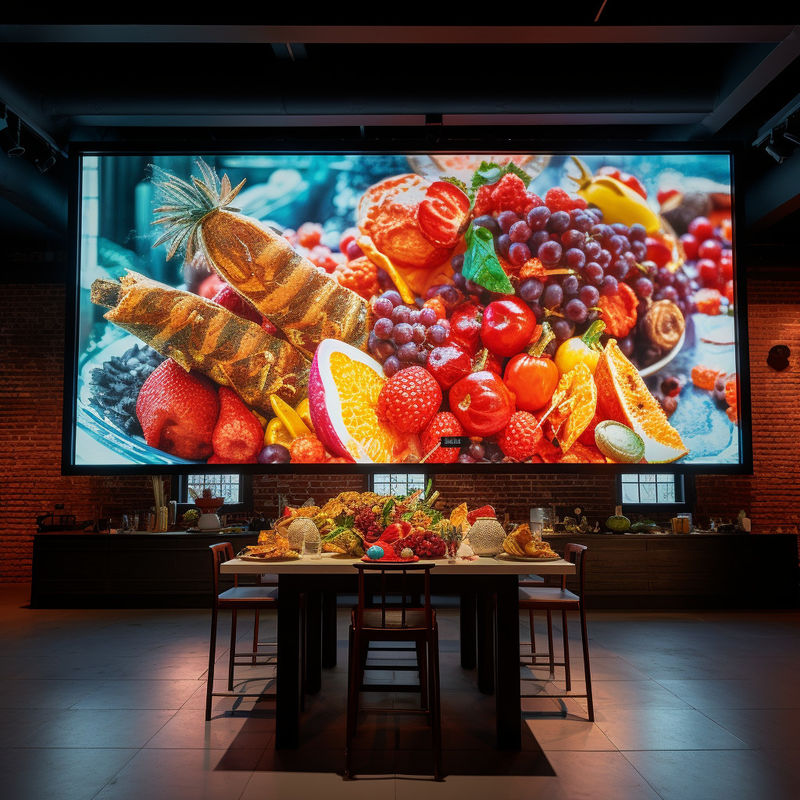

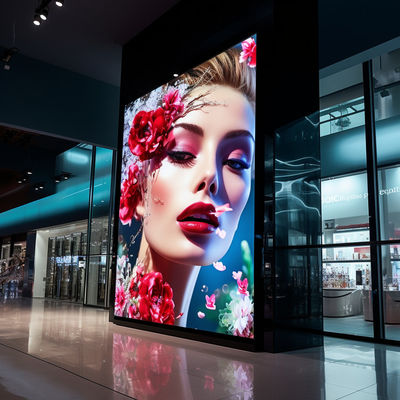

Product Images
