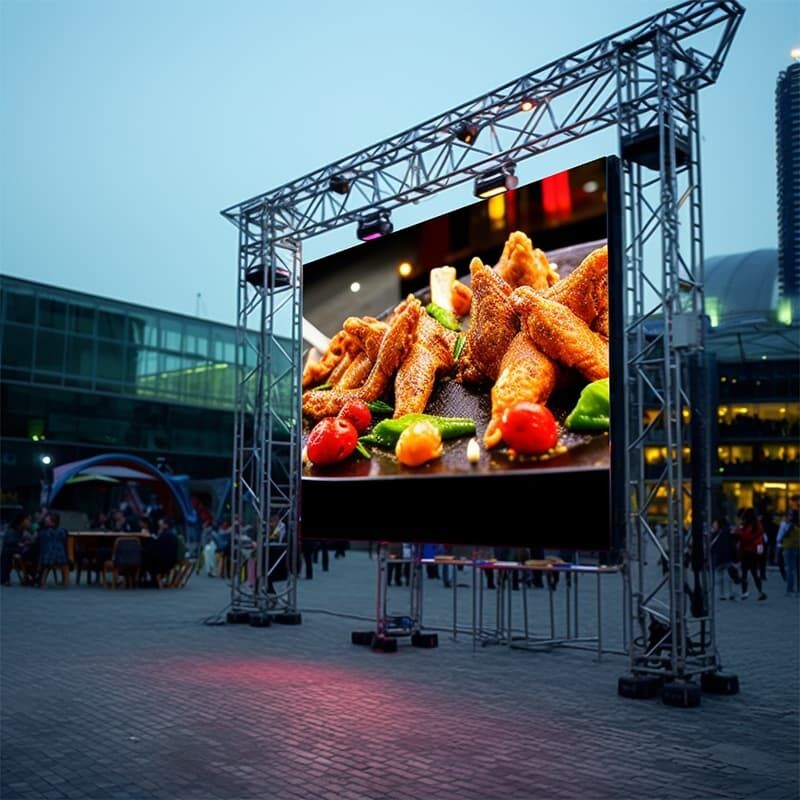

Outdoor Rental LED Screen with IP65 Waterproof Protection for Concerts and Music Festivals, 500×500 or 500×1000 Panels
제품 상세 정보:
| 원래 장소: | 중국 광둥 |
| 브랜드 이름: | LED King |
| 인증: | CE FCC ISO |
| 모델 번호: | 실외 P2.6 P2.9 P3.91 P4.81 |
결제 및 배송 조건:
| 최소 주문 수량: | 1 |
|---|---|
| 가격: | $133/pc-$202/pc |
| 포장 세부 사항: | 비행 사례 |
| 배달 시간: | 15일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 귀하의 필요에 따라 |
|
상세 정보 |
|||
| 제어 시스템: | 노바스타 | 캐비닛 재질: | 다이캐스팅 알루미늄 |
|---|---|---|---|
| 캐비닛 크기: | 500*500mm, 500*1000mm | 패널 무게: | 7kg |
| 수명: | 100000시간 | 전원공급장치: | AC110V/220V-5V40A |
| 강조하다: | Outdoor rental LED screen IP65 waterproof,LED display panel 500x500 concert,Music festival LED screen 500x1000 |
||
제품 설명
Outdoor Rental LED Screen with IP65 Waterproof Protection
High-performance 500*500mm or 500*1000mm panels designed for concerts, music festivals, and outdoor events
Technical Specifications
Module Specifications
| Parameter | Specification |
|---|---|
| Module Size | 250mm(W)*250mm(H) |
| Pixel Pitch | 2.6mm / 2.9mm / 3.91mm / 4.81mm |
| Pixel Density | 147,928 dot/㎡ / 118,906 dot/㎡ / 65,536 dot/㎡ / 43,264 dot/㎡ |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1415 SMD1921 |
| Pixel Resolution | 96*96 / 86*86 / 64*64 / 52*52 |
| Max Power Consumption | 40W |
| Panel Weight | 0.6KG |
Cabinet Specifications
| Parameter | Specification |
|---|---|
| Cabinet Size | 500*500mm, 500*1000mm |
| Cabinet Resolution | 192*192 / 172*172 / 128*128 / 104*104 |
| Quantity of Panels | 4pcs, 8pcs |
| Hub Connecting | HUB75-E |
| Material | Die-casting aluminum cabinet |
| Maintenance Method | Front/Back service |
| Best Viewing Angle | 170/120° |
| Power Supply | AC110V/220V-5V40A |
| Max Power Consumption | 1200W/㎡ |
| Average Power Consumption | 600W/㎡ |
Technical Signal Index
| Parameter | Specification |
|---|---|
| Driving IC | ICN2153 |
| Scan Rate | 1/24S / 1/21S / 1/16S / 1/13S |
| Refresh Frequency | 3840-7680HZ/S |
| Display Color | 4096*4096*4096 (16bit) |
| Contrast Ratio | 4000:1 |
| Brightness | 4000-4500 cd/㎡ |
| Life Span | 100,000 Hours |
| Best Viewing Distance | 2-30M |
| Operating Temperature | -20℃ to 60℃ |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |
Core Features and Advantages
- High Brightness & Anti-Glare Performance: High-brightness LED modules maintain clear, vivid images under direct sunlight for exceptional outdoor visual impact
- Quick Assembly & Modular Design: Lightweight die-cast aluminum enclosures with front/rear maintenance support tool-free rapid assembly and disassembly
- Robust Durability & All-Weather Adaptability: IP65 protection rating ensures dustproof and waterproof performance for stable operation in harsh conditions
- Simple Operation & Effortless Control: Compatible with Nova controllers and intuitive software for real-time content switching and fault monitoring
- Energy Efficiency & Low Operating Costs: Energy-saving drive technology with intelligent brightness adjustment reduces power consumption
Application Scenarios
- Large-scale Performances: Main and side screens for music festivals and concerts displaying artist close-ups, visual effects, and lyrics
- Commercial Launch Events: Core information window for product launches and brand events showcasing details and presentations
- Celebrations & Ceremonies: Dynamic backdrops for weddings, anniversaries, and award ceremonies enhancing event atmosphere
- Cultural Exhibitions: Digital display terminals for auto shows, art exhibitions, and museum displays
- Public Festival Plazas: Large-scale outdoor celebrations including cultural festivals, sports events, and New Year's countdowns
- High-end Business Meetings: Visual backdrops for forums and summits presenting speaker information and topics
- Temporary Information Hub: Emergency command centers, policy dissemination, and event entrance guidance
Certifications
This product has obtained CE, FCC, and ISO certifications, ensuring quality and safety standards.
Packaging & Transport
Standard impact-resistant flight cases with custom branding services ensure safe transport and enhance brand visibility during rental operations.

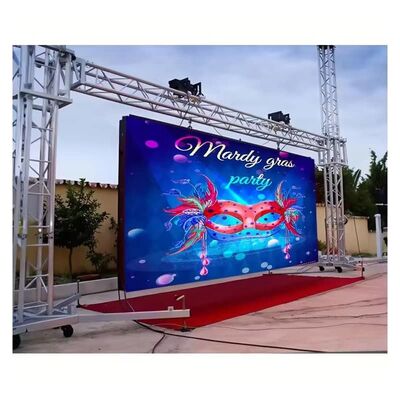

Example Case
이 제품에 대한 자세한 내용을 알고 싶습니다
