P2.976 Outdoor LED Advertising Screen For Building Facade Billboard Displays Front Maintenance Waterproof Iron Cabinet Led Display Screen Led Screen For Stage
제품 상세 정보:
| 원래 장소: | 중국 |
| 브랜드 이름: | LEDKING |
| 인증: | CE FCC ISO |
| 모델 번호: | P3.91 |
결제 및 배송 조건:
| 최소 주문 수량: | 10 |
|---|---|
| 가격: | $791/PC |
| 포장 세부 사항: | 합판 케이스 |
| 배달 시간: | 15일 |
| 지불 조건: | 티/티 |
| 공급 능력: | 10개 15일 |
|
상세 정보 |
|||
| 패널 차원: | 250mm ((W) * 250mm ((H) | 픽셀 밀도: | 112910 도트/m² |
|---|---|---|---|
| LED 사양: | SMD1415 | 캐비닛 크기: | 1000mm * 1000mm |
| 재료: | 방수 철 캐비닛 | 운전 IC: | ICN 2153 |
| 강조하다: | outdoor LED advertising screen waterproof,front maintenance LED display screen,iron cabinet LED stage screen |
||
제품 설명

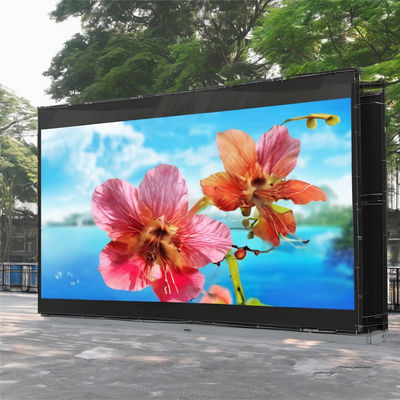

P2.976 Outdoor LED Advertising Screen
Professional outdoor LED display designed for building facade billboards with front maintenance access and waterproof iron cabinet construction. Ideal for stage applications and high-visibility advertising.
Key Features
- Front maintenance access for easy servicing
- IP65 waterproof rating for outdoor durability
- High brightness (4000-4500cd/m²) for clear visibility
- Wide viewing angle (170°/120°)
- Long lifespan of 100,000 hours
- Suitable for building facades and stage applications
Module Specifications
| Parameter | Value |
|---|---|
| Panel Dimension | 250mm(W) * 250mm(H) |
| Pixel Pitch | 2.976mm |
| Pixel Density | 112,910 dot/m² |
| Pixel Configuration | 1R1G1B |
| LED Specification | SMD1415 |
| Pixel Resolution | 84dot * 84dot |
| Max Power Consumption | 22.5W |
| Panel Weight | 0.6KG |
Cabinet Specifications
| Parameter | Value |
|---|---|
| Cabinet Size | 1000mm * 1000mm |
| Cabinet Resolution | 336dot * 336dot |
| Quantity of Panels | 16pcs |
| Hub Connecting | HUB75-E |
| Material | Waterproof Iron Cabinet |
| Maintenance Method | Front Service |
| Best Viewing Angle | 170°/120° |
| Screen Power Supply | AC110V/220V - 5V40A |
| Max Power Capacity | 1100 W/m² |
| Average Power Consumption | 450W/m² |
| Panel Weight | 50KG |
Technical Specifications
| Parameter | Value |
|---|---|
| Driving IC | ICN 2153 |
| Scan Rate | 1/21S |
| Refresh Frequency | 3840 HZ/S |
| Brightness | 4000-4500cd/m² |
| Life Span | 100,000 Hours |
| Display Color | 4096 * 4096 * 4096 |
| Contrast Ratio | 4000:1 |
| Control Distance | <100M |
| Best Viewing Distance | 2-30M |
| Operating Temperature | -10°C ~ 45°C |
| Operating Humidity | 10-90% |
| IP Protective Index | IP65 |

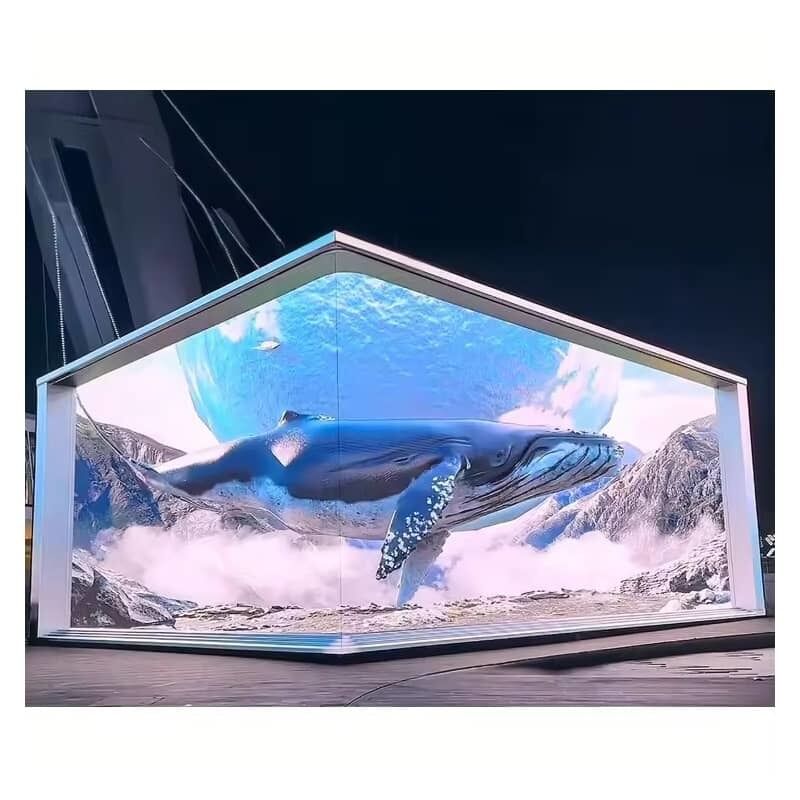

Product Images
