상세 정보 |
|||
| 픽셀 피치: | 3.91mm | 모듈 크기: | 250×250mm |
|---|---|---|---|
| 패널 크기: | 500 x 500mm | 패널 무게: | 7kg |
| 재생률: | 1920-3840Hz | 구동방식: | 1/16 스캔 |
| 명도: | 4000cd/㎡ | 픽셀 밀도: | 65410dot/㎡ |
| LED 사양: | SMD1921 | 최대 전력 용량: | 1200W/㎡ |
| 평균 전력 소비: | 600w/㎡ | 디스플레이 색상: | 4096*4096*4096 |
| 명암비: | 4000 : 1 | 작동 온도: | -10C~+45C |
| 수명: | 100,000시간 | ||
| 강조하다: | P3.91 Pixel Pitch LED Display Screen,4000cd/㎡ Brightness Outdoor LED Screen,500x500mm Panel Size LED Video Wall |
||
제품 설명

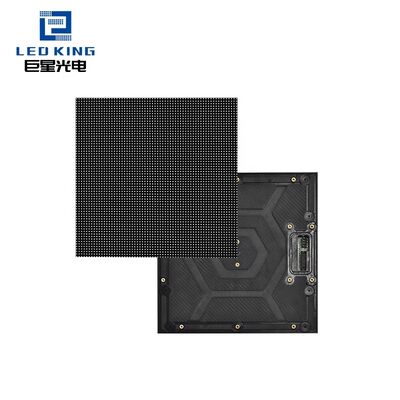

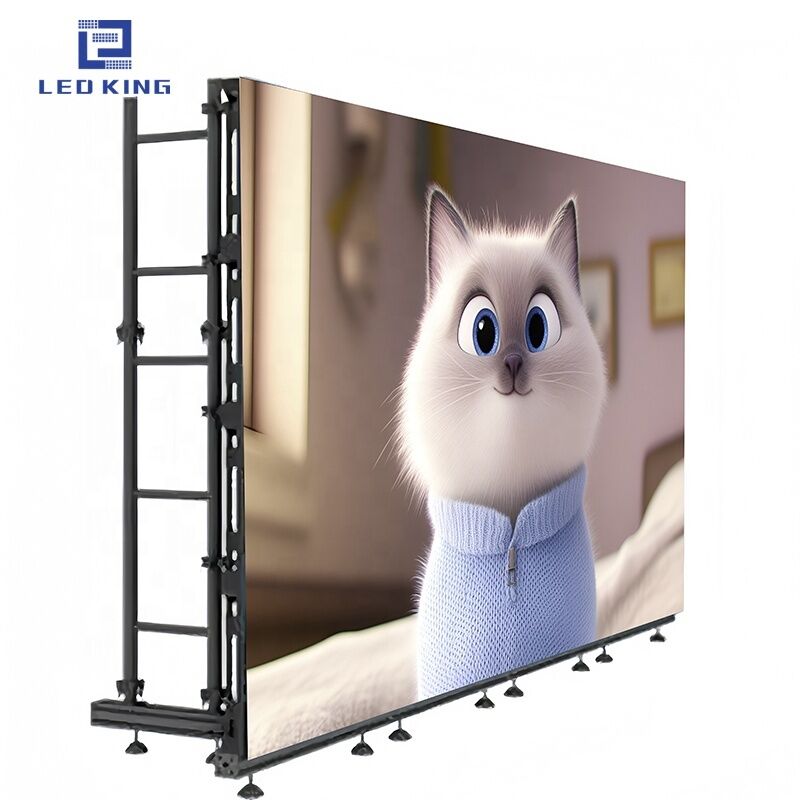

High Brightness P3.91 Rental LED Display Screen
Professional 500×500mm outdoor RGB full-color LED display with high brightness and excellent rental capabilities.

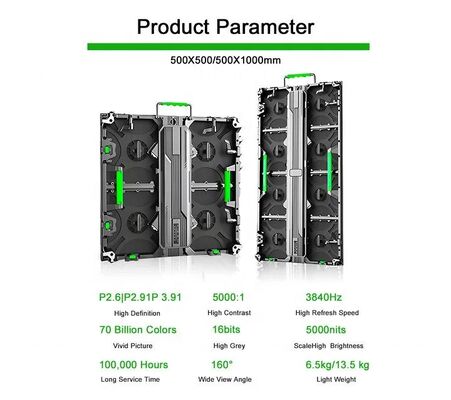

Technical Specifications
| Specification | P2.5mm | P2.976mm | P3.91mm | P4.81mm |
|---|---|---|---|---|
| Pixel Pitch | 2.5mm | 2.976mm | 3.91mm | 4.81mm |
| LED Module Size | 250 × 250mm | 250 × 250mm | 250 × 250mm | 250 × 250mm |
| LED Panel Size | 500 × 500mm | 500 × 500mm | 500 × 500mm | 500 × 500mm |
| Panel Weight | 7KG | 7KG | 7KG | 7KG |
| Refresh Rate | 3840Hz | 3840Hz | 1920-3840Hz | 3840Hz |
| Drive Method | 1/16 Scan | 1/28 Scan | 1/16 Scan | 1/16 Scan |
| Brightness | 1000nits | 1000nits | 1000nits | 1200nits |
| Power Supply | Chuanglian/G-energy/MeanWell | Chuanglian/G-energy/MeanWell | Chuanglian/G-energy/MeanWell | Chuanglian/G-energy/MeanWell |
| Receiving Card | Novastar/Linsn/Colorlight/Huidu | Novastar/Linsn/Colorlight/Huidu | Novastar/Linsn/Colorlight/Huidu | Novastar/Linsn/Colorlight/Huidu |
| Max Power Capacity | 800W/㎡ | 800W/㎡ | 800W/㎡ | 800W/㎡ |
| Working Temperature | -10℃~+45℃ | -10℃~+45℃ | -10℃~+45℃ | -10℃~+45℃ |
| Best Viewing Distance | 2-20m | 3-30m | 3-30m | 4-40m |
| Best Viewing Angle | H: 170°; V:120° | H: 140°; V:120° | H: 170°; V:120° | H: 170°; V:120° |
| Life Span | 100,000 hours | 100,000 hours | 100,000 hours | 100,000 hours |
| Working System | Windows | Windows | Windows | Windows |
Most models feature Kinglight LEDs and 3840Hz refresh rate. For alternative specifications, additional pixel pitches, and detailed technical requirements, please contact our technical team.
Manufacturer Profile
Frequently Asked Questions
What control system do you use and how does it work?
We use Nova Taurus Series asynchronous control system that supports cluster playback and management. The system is compatible with APP, phone, WiFi, iPad, laptop, PC, and cloud control for easy and convenient operation.
Can I place a sample order for LED screens?
Yes, we welcome sample orders for quality testing and verification. Mixed samples are acceptable to evaluate different specifications.
Is custom logo printing available on products?
Yes, we offer custom logo printing. Please inform us formally before production and confirm the design based on our provided samples.
What services do you provide?
• One-to-one sales engineer customer responsibility system
• Project analysis and optimal solution recommendations
• Complete order tracking with detailed progress updates
• Installation and operation training
• Comprehensive after-sales support and ongoing service
• Project analysis and optimal solution recommendations
• Complete order tracking with detailed progress updates
• Installation and operation training
• Comprehensive after-sales support and ongoing service
What is your typical delivery time?
Generally, delivery takes 7-15 days after receiving your deposit. Specific timelines depend on product items and order quantity.
What are your warranty terms?
We provide a 2-year warranty covering structural design, installation issues, system problems, and operational guidance. Our professional after-sales team and dedicated sales engineers will assist with any questions after your order placement.
